IDEAL Electrical B1-1 Wire Connector, Box of 100

In stock - 5 items available
SKU: 14409
Regular price $20.93
OR

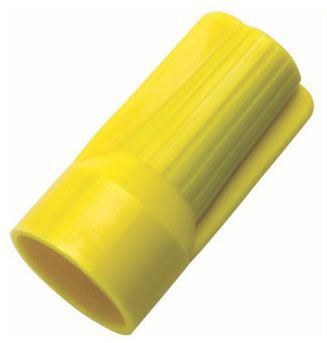

The B-CAP Wire Connector gets you into those hard-to-reach spots comfortably, especially when you're retrofitting or updating. The contoured classic fin design provides a secure grip for extra torque, while the expanding interior spring accepts a wide range of wire sizes and combinations. Three models cover from 22 through 6 AWG.

Specifications:

Type: Fin, Low Profile
Voltage Rating: 600 Volt (Connector), 1000 Volt (Fixture/Sign)
Wire Type: Copper
Wire Size: 22 to 10 AWG
Minimum Wire Combination Size: (3) #20
Maximum Wire Combination Size: (3) #12
Spring Type: Live Action
Shell Material: Zinc Plated Nylon
Color: Yellow
Temperature Rating: 221 Deg F
Standard Package: 100 per Box
Approval: UL 486, CSA C22.2, CE
